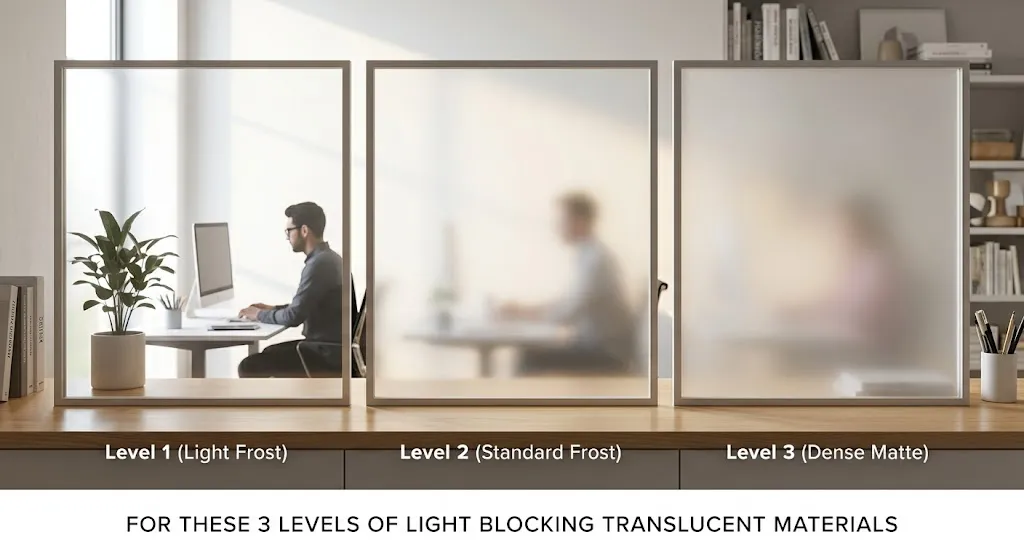

For These 3 levels of light blocking translucent materials
Natural daylight is often manipulated for defining architectural features, workspace partitions and luxury interior design. A constant challenge professionals encounter in designing a space is striking the right balance between biological need for scavenging from ambient solar radiation, and psychological demand of acoustic/visual privacy. This design problem had been a bipolar one for decades. It simply developed a new vocabulary dependent on high-performance transparent clear glass panes—a proved, and subsequently extensively readopted, method—for maximum light transmission at the cost of privacy or opaque structural walls where overall visual containment led to interior zones being plunged into artificial nighttime.
Usage of translucent material solves this age-old problem related to space. Translucency functions as a highly engineered intermediate state between the transparent and opaque with respect to inertia in that it lets some percentage of visible light spectral content pass through its substrate while simultaneously refracting, scattering or diffusing incident wavefronts. The eye cannot perform this fine-tuning of focusing because optical scattering blurs contours, contrast lines and details on the other side of the material.
Working with mechanical properties, physical attributes of builds — knowing what engineering metrics create real variances between translucent products is crucial for both modern commercial and residential planning. The range of translucency within the physical spectrum is segmented into three separate levels, as determined by the precise balance between percentages of light transmission and diffusion haze measurements.
Optical Science of Translucency: The Transmission – vs. Haze Relationship
In order to fully assess the three levels of translucent materials, you need a strong grasp on how light plays with these non-opaque surfaces and their different physical properties. Simple tinting or shading does not small define true translucency, rather it is a mix of the two co-dependent phenomena: Total Luminous Transmission and Wide-Angle Light Scattering (technically referred to in material science as Haze).
[ Incoming Light Wave ]
│
▼
┌──────────────┐
Substrate ──► [ Refraction via Internal Micro-Particles ]
└──────────────┘
Total Luminous Transmission
It quantifies the percentage of incident-visible light which is able to pass through a material panel and exit from its opposite face. Suppose it is being directly hit with 1,000 lumens of solar radiation and transmits through an interior room just 700. It has a luminous transmission rating of exactly seventy percent (70%). The key to maximizing these benefits in daylighting design at high performance is optimizing this number—generating shade reduces the need for artificial electrical loads and enhances focus/concentration/performance.
Haze and Forward Scattering
If transmission is responsible for how bright the room would be, haze sums up the amount of privacy it will provide. Haze is defined as the percentage of transmitted light that has been deflected from a straight path along an axis co-linear with the incident beam by more than 2.5 degrees.
A material with a low haze rating allows the light to flow through almost without deviation, creating an image that is very clear. With a high haze rating, the micro-textures on the surface—or crystalline particles floating in that chemical matrix—bounce light photons back and forth at millions of conflicting angles. This forward scattering destroys the spatial coherence of the image and sharp human silhouettes inside convert to unidentifiable smooth colored soft fields.
Low Diffusion /High Transmission (Light Frost)
LEVEL 1 TRANSLUCENT LIGHT BLOCKING
This level of translucency is very light blocking, with high luminous efficiency The design is for applications where the natural daylighting with privacy as a very-minor consideration. That level is usually achieved with a gentle chemical acid-etching process, overhead or low-pressure surface sandblasting, or very subtle micro-matte polymeric window films.
+————————————————————-+
| LIGHT FROSTGHz I-O: LEVEL 1 OPTICAL MATRIX |
+————————————————————-+
Incoming Light: 100% ───► [ Low diffusive base ]
│
├─► Direct/Semi-Direct: 70%
└─► Scattered/Diffused: 10%
(Total Luminous Transmission: 80%)
Material Characteristics and Chemical Profiles
Low diffusivity translucent substrates are designed to maintain the bright character of a space. That is produced in the manufacture of glass: a fast, shallow hydrofluoric acid scrub, more sparse deep microscopical pits on float glass. It is done by adding a small amount of micro-bead cross-linked organic spheres to the heated molten plastic matrix when making acrylic and polycarbonate. The refractive index of these spheres changes only slightly from that of the base polymer, causing a gentle bending as opposed to an abrupt block.
Performance Metrics
Total Visible Transmission: Preserves around 60% to 80% of available visible light
The grading for Haze Value is normally between 15% — 40%.
Visual Privacy Index: Low. You can still see the structural outlines of people, furniture and monitors from across it. Color is instantly recognizable and small movements can be tracked around a room.
Strategic Applications
Low diffusing materials are utilized in environments where a subtle architectural division is needed without confounding the aesthetic continuum of an open space.
Retail Storefronts: Used to edge out premium display windows, with glare cut down from the outside and structural pillars disguised while remaining completely transparent towards passing pedestrian traffic
Conference Room Accents: Getting affixed in broad horizontal bands or narrow accent areas over transparent glass doors, letting passersby know full offices are occupied, but keeping the office spirit of collaboration flowing even if well fought seminars have been crowded out.
Atrium Skylights: Used in overhead glass canopies to diffuse strong midday sun rays, eliminating high contrast blind-spot areas on work desks underneath while maximizing natural light.
Neutral Diffusion / Balanced Privacy (Frosted)
Level 2
This level is the industry standard for commercial and residential multi-use spaces, which is Level 2. Medium diffusion translucent materials are engineered to offer a controlled, balanced solution between harnessing sunlight and providing an effective private living environment.
+————————————————————-+
|================= LEVEL 2 OPTICAL MATRIX : STD FROST ================|
+————————————————————-+
Medium Diffusion Substrate ───► Outgoing Light: 100%
│
├─► Direct/Semi-Direct: 25%
└─► Scattered/Diffused: 30%
(Total Luminous Transmission: 55%)
Material Characteristics and Chemical Profiles
Liquid foam frosted material using complex surface restructuring or a high concentration of internal colloidal directors to enhance light diffusion. These levels are generally produced with either a deep acid-etching process or consistent, high-pressure aluminum oxide sandblasting. This generates a surface composed of a rugged topography filled with deep micro-peaks and valleys splintering the light entering in.
They mix titanium dioxide particles or calcium carbonate micro-crystals into polymer sheets (such as architectural Lexan or high-impact plexiglass). These additives produce internal refraction, causing the waves of light to bounce back and forth many times inside the core of the panel before exiting on its other side.
Performance Metrics
Total Passing of Luminous : Total Times Light Passed Through Approximately 40% to 60% Visible Light Available
Haze value rating: Generally somewhere between 50% – 80%.
Visual Privacy Index: Moderate. This is heavily based on a privacy gradient in terms of distance. The flat translucent panel allows you to see the shadow and overall shape of an object or person pressed against it. But beyond a few inches, as the subject recedes from the material—the image blurs to an inchoate glow of color.
Strategic Applications
Medium diffusion substrates provide for semi-private environments with daily use, balancing the desire to have a naturally bright space in Louisiana’s climate.
Corporate Office Partitions : These are accomplished for specific walls around executive rooms and shared spaces. It permits daylight to penetrate deep into the inner core of a structure while isolating computer displays and work files from rogue observers.
Household Washroom House windows: Put in straight from exterior house windows rather than glass blocks on shower stalls to be able to conceal through outdoors properties although letting buyers rinse by means of organic sunlight.
Medical Reception Dividers: Positioned at check-in desks to serve as a physical and psychological divider between patient intake folders, private computer screens—and waiting room areas.
High Diffusion/ Maximum Privacy (Matte Dense)
Level 3
The hardest stage of light-blocking translucency is the very brink at which mild scatters prior to a fabric passes into lethal opacity. These high diffusion materials achieve total privacy without sacrificing the illumination itself, scattering the light to annihilate shapes and images.
+————————————————————-+
LEVEL 3 OPTICAL MATRIX: DENSE MATTE
+————————————————————-+
Light comes IN : 100% ───► [ High Diffusion Substrate ]
│
├─► Direct/Semi-Direct: 2%
└─► Scattered/Diffused: 23%
(Total Luminous Transmission: 25%)
Material Characteristics and Chemical Profiles
High diffusion transmissive panels have a fine surface structure and extensive internal additives. They can either be produced by depositing heavy, double acid-etched layers on both sides of a plate glass sheet or by laminating opaque PVB layer films between two safety sheets.
For plastic extrusion however, manufacturers rely on complex multi-layered co-extrusion processes that combine a structurally sound clear acrylic base with a dense matte exterior capable of holding light-diffusing beads. The surface of the material feels totally velvety or incredibly textured to touch. This means that specular reflection (glossy glare) is completely eliminated and all of the incoming light is diffused into a smooth, isotropic glow.
Performance Metrics
Total Luminous Transmittance : Preserves approximately 10%-30% of what visible light is available.
Haze Value Rating − The average value lies between 85% and 99%.
Visual Privacy Index: High. Fine details, contrast lines and skin tones even clothing shapes are all obliterated. Even if a human body is pressing right against the glass, an onlooker outside will see nothing more than a ghostly impression of its shape. The subject is, at more than a foot away, completely lost against the backdrop yielding complete privacy without limitation from ambient lighting.
Strategic Applications
And, high diffusion materials only when you know that the system is going to be security-sensitive and very private or in a special technical environment.
Medical Examination Rooms and Clinics: These are deployed in modern medical facilities created as exterior windows or entry doors allowing natural light to come into examination areas while providing complete patient modesty during examinations.
Street-Facing Ground Floors: Aimed to limit views into urban residential townhomes or ground-level banking offices from bustling public sidewalks without installing heavy, dust-obsessed window drapes.
Industrial Light-Diffusing Panels: If you are a photography studio or want to use the backing walls for your architectural lighting well then it is ideal. It has a very dense satin finish texture that removes hot spots from LED arrays, and spreads the light uniformly throughout the full area of the panel.
Comprehensive Material Comparison Matrix
The following table juxtaposes the physical performance data, optical characteristics and structural behavior of each tier side-by-side to help you choose precisely which level of translucency is necessary for a common commercial build or design initiative.
Performance Metric / Property
L1: Light Diffusion (Light Frost)
Level 2: Medium Diffusion (Frosted Standard)
Level 3 – High Diffusion (Matt Dense)
Total Luminous Transmission
High Yield: 60% to 80%
Balanced: 40% to 60%
Controlled: 10% to 30%
Haze Value Percentage Range
Minimal Scattering: 15% to 40%
Moderate Scattering: 50% to 80%
Maximum Scattering: 85% to 99%
Silhouette Detail Retention
Sharp, highly recognizable details
Softened, blurred outlines
Completely erased shapes and colors
Optimal Privacy Distance Profile
More than 116 m for basic privacy
Provides near-perfect privacy at 0.5m
Offers instant privacy at 0 meters
Specular Reflection Profile
Low Gloss Down – Keeps a slight signature sheen to the surface.
Semi-Matte (Diffuses immediate surface glare)
True Matte (Completely eliminates reflection)
Daylighting Penetration Depth
Deep (For the illuminating of inner core building)
Moderate- (Lights up short and medium distance areas)
Shallow (Create very specific light glows)
Primary Production Methodology
Beads very similar in density to low-density polymer beads are supplied for surface separation, with a light acid wash
Deep double sided etching : Sandblasting
Co-extrusion with thick opaque PVB films: a dual layer system
The Proximity-Based Privacy Gradient
When designing translucent surfaces, a key concept for interior architects and content developers to learn is the Proximity-Based Privacy Gradient. In order to extract the privacy performance of a ‘translucent panel’, there can be no such thing as an objective or static measure — it must, by definition, be measured as dynamic (that is responsive based on how far you are away from your subject [the translucent barrier and observer].
[ Object ] ───► (Distance Decreasing) ───► [ Translucive Panel │[ Observer
Fallback: light waves travel a lesser distance to scatter. Silhouette becomes SHARPER.
[ Object ] ◄── (Increasing Distance) ─── [ Translucent Panel]
Outcome: The light waves scatter too much in space. Silhouette DISAPPEARS.
The Physics of Shadow Casting
If an object is closely placed to a translucent panel, the light waves bouncing off of it travel only a short distance before reaching this material. Thus, the dispersed light rays do not have sufficient physical space to fan out and spread apart, which leads to a relatively crisp shadow on the far side.
The object moves away from the translucent barrier and deeper into the room, leading light rays that must pass through more free space following refraction in a subsistence model. The additional travel distance enables the rays to be all far apart from one another, and essentially more grossly spread each other out as they blur the image. Thus, a Level 2 standard frosted partition can readily offer Level 3 high-security due to the fact that interior desks or seating paths are at least one meter from any glass surface.
Soothing Substitute Care and Building Registry Procedures
Pour conserver la pureté optique, les performances de transmission et le profil homogène d’un meuble translucide durant toute sa vie, une maintenance rigoureuse complète ce travail. Micro-textured and acid-etched surfaces can absorb oils or be chemically degraded if handled improperly.
Managing the Lipid Contamination Hazard
The micro-peaks and valleys that make translucid glass and polymers scatter light, will get worn down in time by skin oils (lipids) and sweat. If a human presses bare hands onto frost on glass walls, the oils from their skin would fill in tiny holes across the surface.
Human skin oils fill these pits, and because the refractive index of human skin oil is very similar to that of clear glass so filling it minimizes surface roughness. This leaves a transparent area or fingerprint while lowering the haze rating and disclosing the cabinet.
Professional Cleansing Workflows
The Alkyl-Glucoside Cleanse: To strip skin oils without harming delicate fiber, you need to bypass wax-based glosses that are effective and heavy silicone exfoliants. Cleaning pads are also used here instead of panels; however, this time the solution is one that contains no alcohols and specializes in ammonium surfactants or alkyl-glucosides.
Mechanical Agitation: Avoid abrasive scrubbers, steel wool, and high iron scraping tools for all translucent surfaces The recommended cleaning tool for sandblasted or etched glass is an ultra soft, lint free microfiber cloth or a very dense polyurethane sponge. Move slowly, using an overlapping circular motion to lift oils out of the micro-texture without wearing down those peaks.
Polymer Shielding Protocol: For high traffic commercial environments where glass is subject to repeated human contact, specify manufacturer-applied industrial oleophobic (oil-repelling) polymer coatings. Consider how long it would take in daily use for the new clear barrier that protects micro-pits from skin oils to wear down — if at all, since this layer is engineered to keep its intended transmission and haze ratings over decades.
