Material Science: Selecting the Right Timber Species
The outdoor lighting architecture has seen a tsunami of change. Whereas commercial developments and residential properties once depended on harsh, industrial galvanized steel or shiny aluminum fixtures cold to the touch, current design tendencies are changing. Increasingly, architects, landscape designers and homeowners favor natural materials that harmonize with the surroundings. At the center of this movement is its wooden light post, which combines natural texture with new optical engineering wrapped around a structural fixture. More than just a luminaire holder, it raises the outlook of pathways and parks or driveways in commercial complexes with respect to the appearance of premium wooden light posts. But, it takes an intimate knowledge of species and pressure-treatment chemistry; wire routing; ground-anchoring engineering to use timber as a built-in structural support for electrical fixtures. Our ultimate guide walks you through the inner workings of wooden light posts so that you’ll be able to choose, install and maintain a system that’s just right for your landscape architecture.
But selecting the right type of wood is important when designing an outdoor light post. Timber is organic and being so it must be eligible to the effects of atmospheric wetness, ultraviolet (UV) rays injury from subterranean termites as well as mildew intrusion. If you are looking to have the wood light post straight and structural for 20 to 50 years it needs to be built up of classes of dense grain structures or high concentrations in natural preserving oils such as that problem.
[ TIMBER OPTION BLUEPRINTS ]
│
┌─────────────────────┴─────────────────────┐
▼ ▼
[ Natural Hardwoods ] [ Softwoods ]
- Western Red Cedar – Southern Yellow Pine
- Coastal Redwood – Douglas Fir
(Rich natural oils / UV-resistant) (Requires heavy pressure treatment)
Natural Hardwoods and Self-Preserving Timbers
Western Red Cedar (Thuja plicata): They love the high-end residential and commercial lighting GSC design in cedar. The wood is not only biologically resistant to decay, but contains natural chemical compounds in the form of thujaplicins and phenolics. These organic materials become toxic to wood-decaying fungi and wood-boring insects, making the timber untouchable. Cedar has a straight, tight grain pattern which does not warp nor twist and will also resist checking (splitting along the grain) if exposed to extreme freeze-thaw cycles.
Coastal Redwood (Sequoia sempervirens): Like Cedar, this is another tree that contains high amounts of natural tannins to create a rich dark red color and protects the wood from rot in the environment. Redwood has an incredibly low shrinkage factor, so the dimensions of a square or turned light post will remain stable internally and out in space with no cracking around integrated electrical boxes.
This composite of Brazil & Honduras. Ipe / Brazilian Walnut (Handroanthus spp.) ): Ipe is the ultimate choice across ultra-premium high-traffic commercial environments. It’s so heavy and dense it has a fire rating similar to concrete and steel. The high density prevents penetration of moisture, and resists deep scratches as well as graffiti and mechanical impact. Yet its hardness requires special carbide-tipped tools for cutting the inner wire raceways.
Pressure-Treated Softwoods If you are unable to find someone who has a good exotic hardwood or even one of the finest cedars in your project, pressure treated softwoods is the most economical option that provides durability.
Southern Yellow Pine (SYP) Southern yellow pine, or SYP as it is often referred to here in the south excels at cellular threat ability. Because of the cellular structure, chemical preservatives can effectively penetrate deep into heartwood during cyclic pressure treatments. It has high structural strength and impact-resistant performance, making it ideal for tall or heavy-duty commercial lighting poles.
Douglas Fir: It has an excellent load-bearing capacity and is used in most larger, industrial scale timber light poles. Sometimes timber blocks are so dense the substances injected do not reach the wood at all, which means manipulating its veins with small mechanical incisions (which can be avoided in pine) before conductivity measurements – graphite injections and dry-corrosion tests.
Chemical Preservation Systems for Timber Posts
If it goes directly in the ground, softwood that hasn’t been treated will rot within a couple of years. To avoid this deterioration, softwoods are subjected to a vacuum-pressure process in which air within the wood cells is extracted and replaced with specially-designed chemical formulations. Knowing these chemical alternatives gives you the capacity to call out or request a put up that meets each of your demands for environmental safety and how it looks.
Copper Azole (CA-C) and Micronized Copper Azole (MCA)
Micronized Copper Azole represents the modern standard for residential and light commercial wooden lighting posts.
The Chemistry — Aqueous carrier solution of solid copper particle micron-sized is forced deeply into the timber. Copper serves as an excellent broad-spectrum fungicide and the azole offers selective activity against copper-resistant arthropods. The Benefits: Compared to traditional treatment methods, wood treated with MCA has a much lighter (more natural) color than the very bright green of other treatments. It’s also much easier to stain or paint and far less wrathful on the internal steel fasteners & electrical conduits fixed inside the post.
Chromated Copper Arsenate (CCA)
The Chemistry: An old-school, heavy-duty preservative that contains chromium, copper and arsenic. The Restrictions: CCA-treated timber is limited from almost all consumer residential uses due to environmental restrictions. It is still extensively blanket-regarded for heavy commercial utility poles, highway lighting and marine dock posts because of its almost impervious chemical barrier against bio-deterioration
Structural and Aesthetic Design Formats

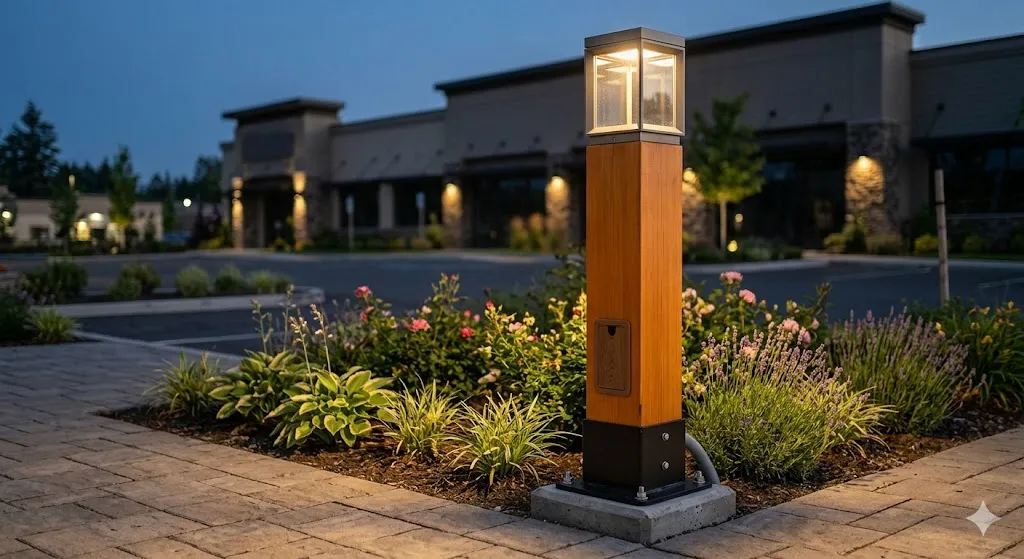

That’s customized wooden lamp post designs and are adaptable to radiant rustic wilderness lodges for the most modeled contemporary homes. The modern wooden light posts above combine raw wood with sleek metallic tops. This design language forms a bridge between organic materiality and geometric precision, which has made it popular across corporate campuses as well as in public parks or new housing developments.
The True Square Post (Solid Timber)
Aesthetic: Sharp 90-degree lines and angles enhance geometric shapes in landscaping Different types of square posts are available within the range between 4 inches to 8inches. Design Note: Solid timber is subject to natural “checking” Checking develops when the wood is drying in a thick layer, causing fast shrinking of outer layers and deep vertical splits due to tension within an incompatible wet core. Check rarely compromises the actual structural integrity of the post, but can if not anticipated interrupt a clean and modern aesthetic in architectural design.
Glue-Laminated (Glulam) Engineered Timber Posts
Aesthetic profile: A uniform distribution of color in flawless, ultra-straight square or rectangular profiles. Engineering note: Glulam posts are multi-laminated wood columns engineered by gluing relatively small pieces of kiln dried, stress-rated timber together with high shear strength waterproof structural adhesives. Glulam posts are virtually free from checking, warping or twisting since each layer is dried separately before bonding. They can bear structural loads massively higher than solid wood timbers, making them exceptionally well suited to suspend heavy duty multi-fixture commercial lighting arms.
Turned and Peeled Round Posts
Aesthetic Profile: A classic, rustic look reminiscent of historic parks, ranches, and traditional streetscapes.
Engineering Note: These posts are machined on large industrial lathes to ensure a completely uniform diameter from base to tip. Alternatively, “peeled” poles retain the natural, tapering profile of the original tree trunk, providing a rugged, organic feel ideal for nature trails and coastal boardwalks.
Internal Electrical Integration & Wire Routing Engineering
A major challenge when designing a wooden light post is cleanly concealing the electrical wiring. Running raw cables down the outside of the wood looks unprofessional and exposes the wiring to weather damage and vandalism.
Proper internal integration requires specific structural steps.
+————————————————————-+
| INTERNAL ELECTRICAL ROUTING MATRIX |
+————————————————————-+
[ Fixture Head ]
│
▼
┌──────────────────────────────────────┐
│ Factory-Drilled Internal Wire Chase │
│ (1-Inch Smooth Internal Conduit Void)│
└──────────────────────────────────────┘
│
▼
┌──────────────────────────────────────┐
│ Handhole Access Compartment │
│ (Weatherproof Gasket / Ground Screw) │
└──────────────────────────────────────┘
│
▼
┌──────────────────────────────────────┐
│ Liquid-Tight Conduit Entry │
│ (UF-B Direct Burial Cable Feed) │
└──────────────────────────────────────┘
The Internal Wire Chase (Center-Boring)
Premium wooden lighting posts are manufactured with a factory-bored internal cavity known as a wire chase.
The Setup: A long industrial drill bores a continuous 1-inch to 1.5-inch diameter hole straight through the exact center of the post from the top down to the base.
The Execution: This allows the electrical contractor to feed standard UF-B direct burial cables or flexible liquid-tight non-metallic conduit (LFNC) straight through the center of the wood, completely hidden from sight.
Integrated Handhole Access Compartments
Each electrical pole must have an access point where wires are placed in the usage of being mended, observed and related to the principle power lines originating from underground. The Recessed Box: The utility box is full depth, milled into the side of a wooden post that is usually set 12 to 24 inches above the final ground grade line.
The Execution: This cavity houses a code-compliant, weather-gasketed junction box and an exterior faceplate made of matching wood or heavy cast aluminum. This access panel must feature a dedicated grounding screw connected to the overall electrical circuit.
Ground Anchoring and Foundation Engineering Options
The longevity of a wooden light post depends entirely on how it connects with the earth. If moisture pools around the base of the timber, rot will set in rapidly.
There are two primary structural methods for securing a light post into the ground.
As illustrated here, mounting the wood post to an elevated stone or concrete foundation isolates the timber from groundwater and soil bacteria. This significantly extends the life of the post compared to direct burial.
Method A: Direct Burial Foundation
The direct burial is the normal way to do things, preferred for its simplicity and without any nasty looking concrete base exposed above ground. The first stage of this procedure is stepping about for Bored Piers prepared for bridging; lighten the footing, housing a vertical hole with an energy auger. The depth has to follow local building codes, usually below the typical frost line of that region or at least 1/3 rule (that is 1/3 in and 2/3 out). Step 2: Fill Drainage Bed: Add a layer of crushed, angular drainage gravel (4 to 6 inches) at the bottom of the void. NEVER put any wooden post on bare dirt because ground water will wick up the end-grain fibers in your timber. Step 3: After placing the gravel bed, you should place your pressure-treated post on top of that gravel. Lock that timber into a beautiful vertical plumb using heavy duty bracing planks and spirit level. Step 4: Concrete Pouring — Wet concrete is poured around the post with an allowance of a couple inches above surface grade. With the trowel, slope the top of concrete downward and away from timber to create a built-in watershed.
Anchor Foundation Method B: Steel Shoe (Bolted Down)—The Longevity Standard
To completely prevent wood rot and make future post replacements easy, engineers use a heavy-duty steel shoe foundation.
The first step for this is to put a structural concrete column/ pier which is poured into the ground using Sonotube cardboard forms( cylindrical form). But old school sea and steel anchor bolts are directly sunk into the wet concrete. The Shoe: A ½-inch-thick (12-mm) cast-iron or galvanized steel sleeve—known as a shoe—is bolted directly to the concrete base. Step 3: Fit The PostThe bottom of the wooden light pole slides into a steel sleeve and is locked in place with high-tensile hot-dip galvanized through-bolts. By using this layout, the timber is completely separated from being in soak with soil moisture and it prevents water collecting at that area ultimately prolonging the life of the post.
Long-Term Maintenance & Restoration Workflows
Even premium, pressure-treated timbers require ongoing maintenance to counteract the bleaching and drying effects of constant UV sun exposure. Following a strict maintenance cycle protects your investment and keeps the wood looking vibrant.
Managing Environmental Finishes
Penetrating Semi-Transparent Stains: Avoid standard film-forming paints or heavy solid varnishes on outdoor wooden posts. Topcoats that form a film trap moisture in the wood fibers. If the post is heated by the sun, that water will vaporize and hot air expands to form a bubble in paint which causes it to blister, crack and peel. Instead use a high quality penetrating oil-based stain that contains trans-oxide UV inhibitors. These oils penetrate deep into the grain cells helping to replace natural extracted oils of wood while allowing timber to breath. Coalition Cycle: Open new penetrating discolour every second to fourth yr. To determine whether a post should be recoated, simply splash some water on the surface. If water beads up nicely, the present coating is still there. If the water immediately darkens and absorbs, then you have dry wood fibers that will need a new oil treatment.
Managing Structural Checks
Assessment: Check the post annually for structural checks. If a vertical split develops, monitor its depth using a thin wire probe.
